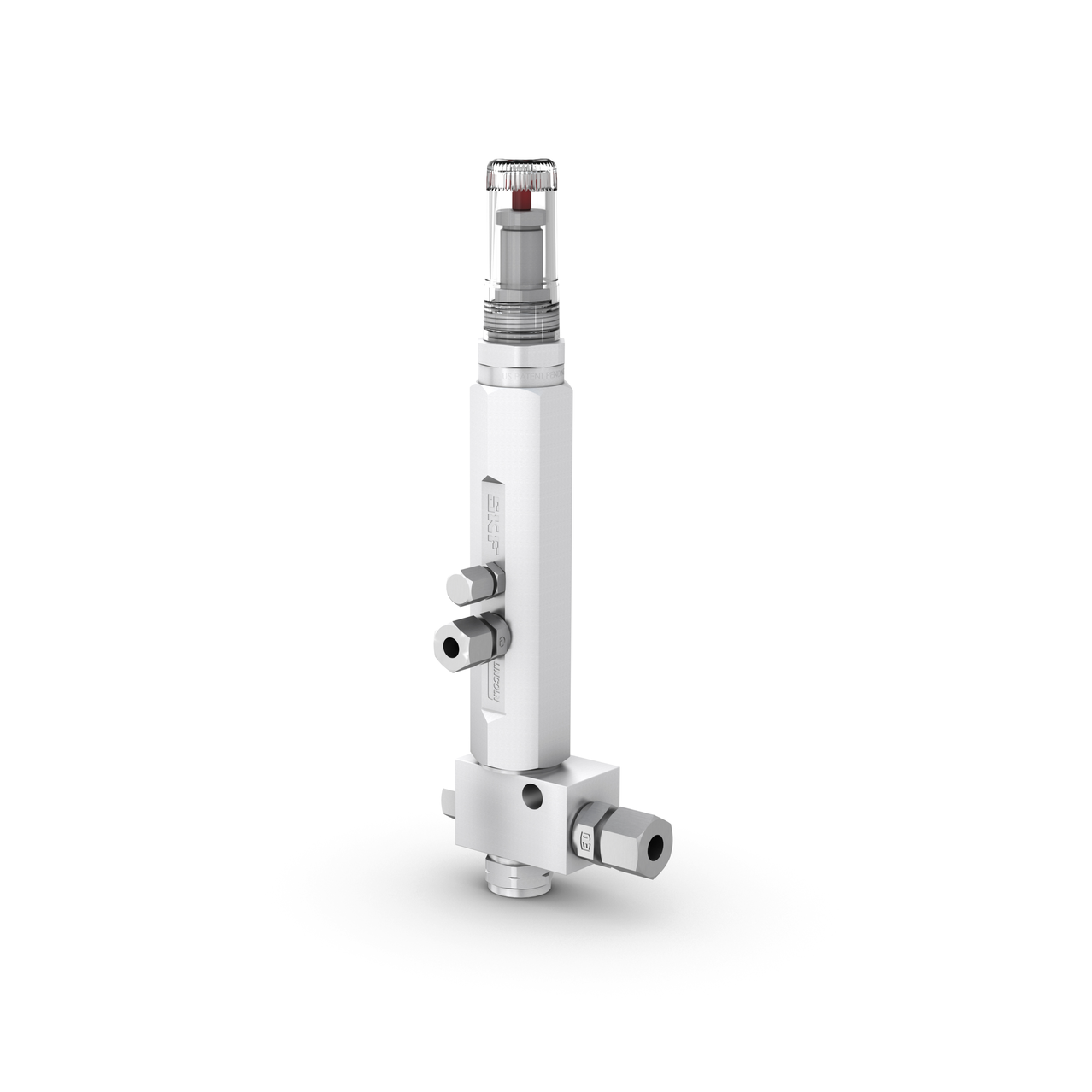

SL-1 INJECTOR

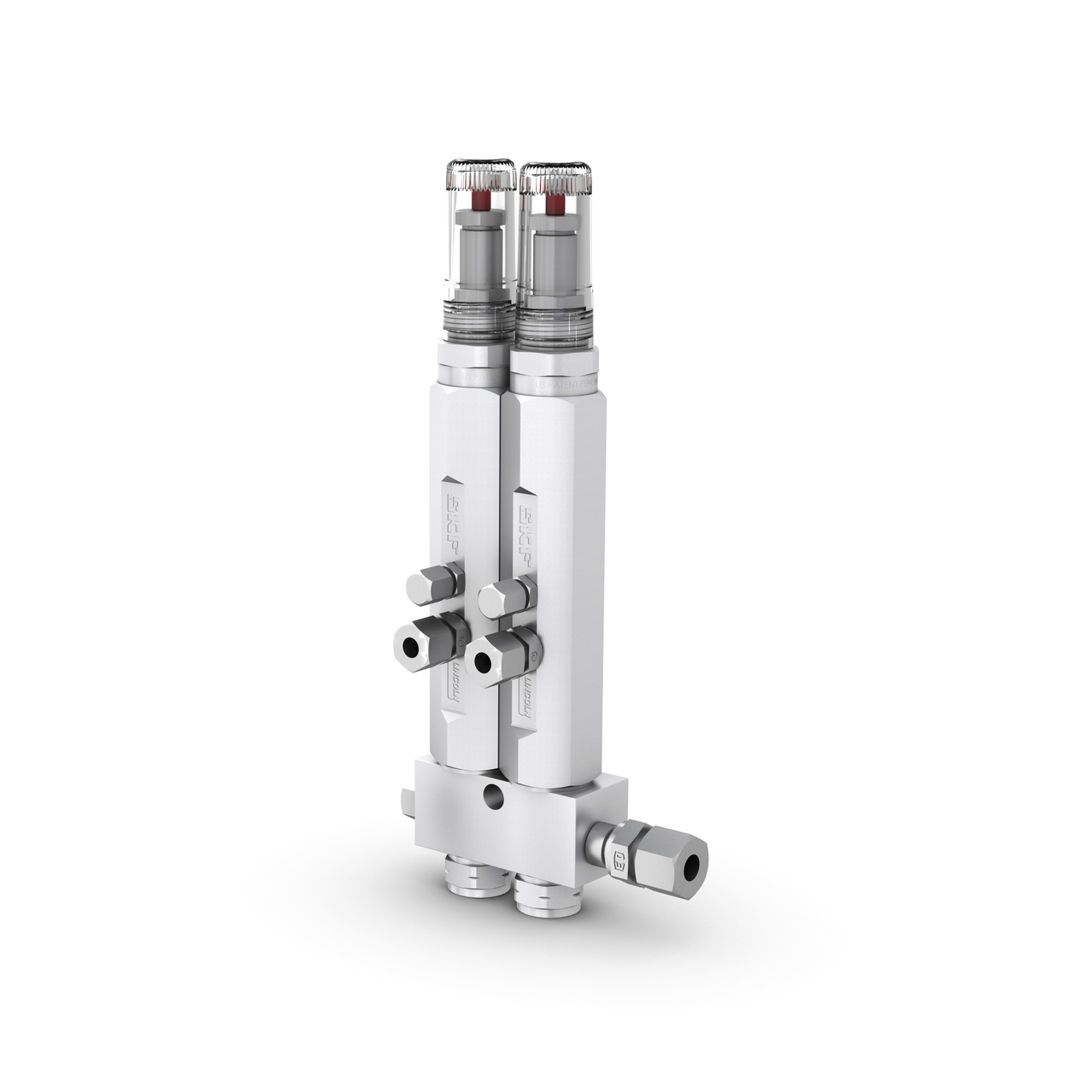

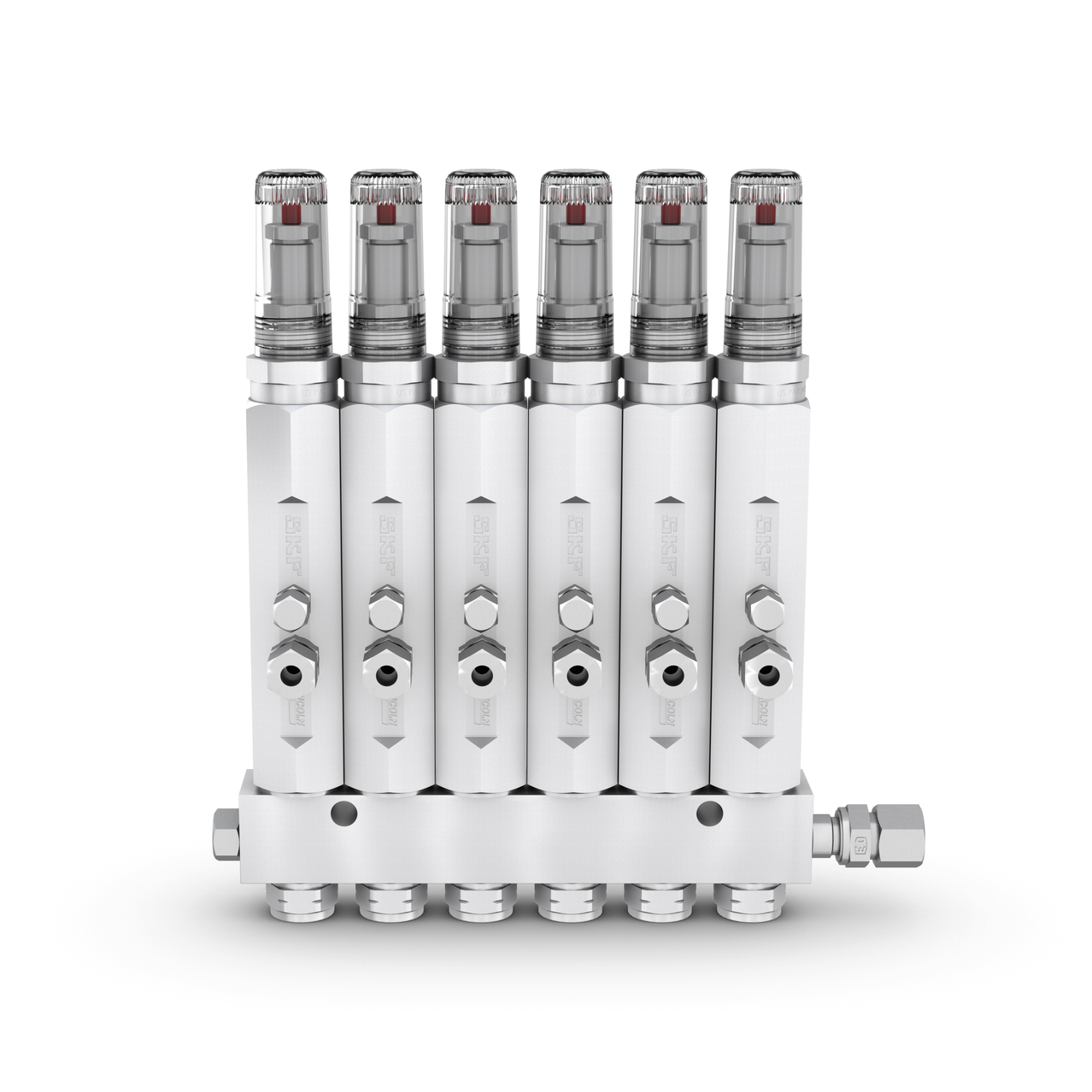

Due to the nature of the manifold, up to 6 outlets can be installed on the SL-1 distributor valve.
The amount of discharge can be adjusted from 0.016 to 1.31cc through the screw on the top.
Whether or not each point is discharged can be checked by checking whether the indicator pin is moved inside the adjustment screw.
The amount of discharge can be adjusted from 0.016 to 1.31cc through the screw on the top.
Whether or not each point is discharged can be checked by checking whether the indicator pin is moved inside the adjustment screw.

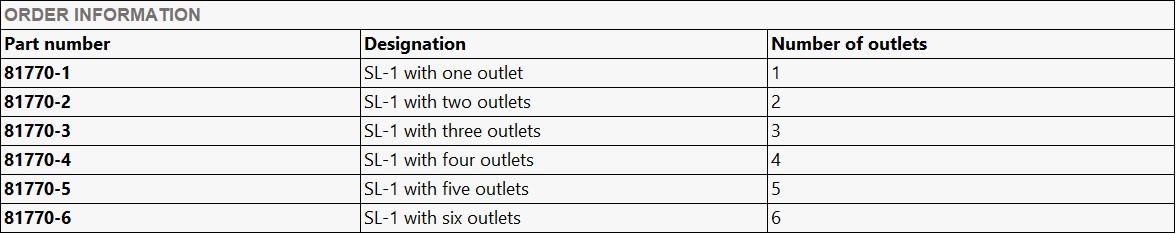

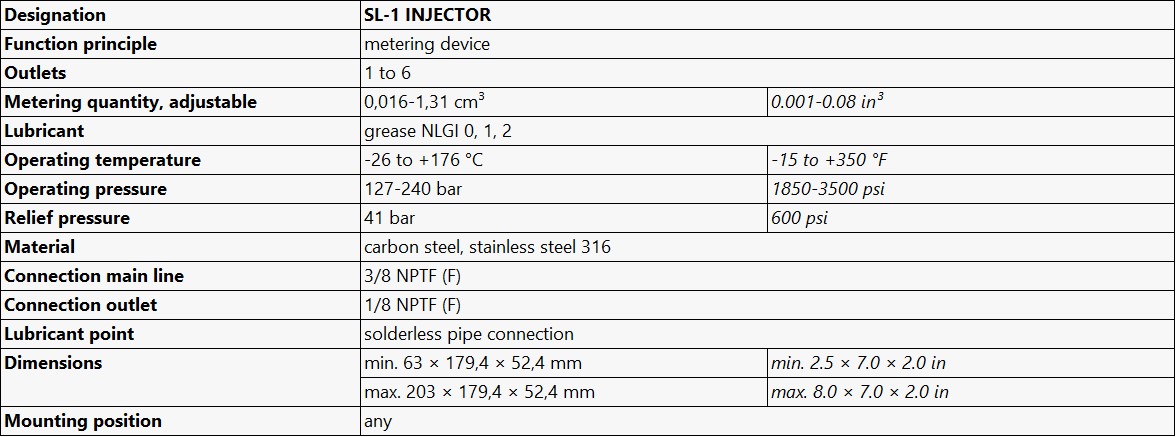

Product specification
