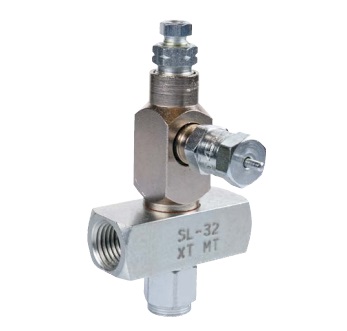

SL-32 / SL-32 HV INJECTOR
The SL-32 is a compact single pipe distributor valve for small paper feeding. You can adjust the discharge amount through the top screw,
Dividers from 1 to 4 can be combined.

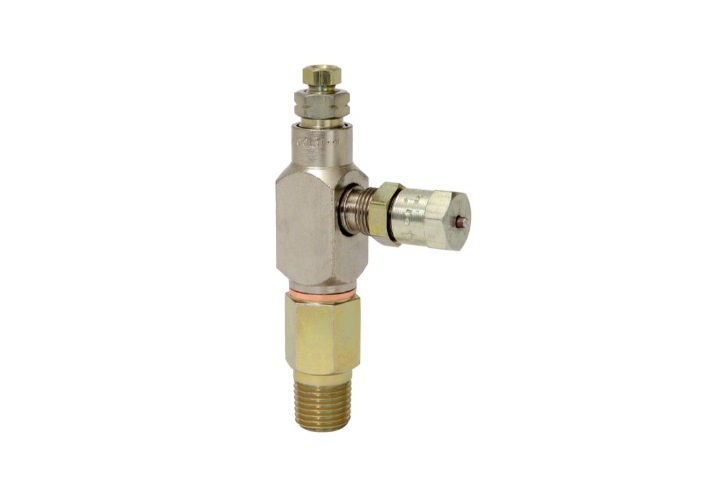

The SL-32 HV is an improved distributor valve that can have a shorter discharge cycle by depressurizing at a higher pressure than the SL-32.
Unlike SL-32, blocks can be made from 1 to 10, and the amount can be adjusted.
Dividers from 1 to 4 can be combined.
The SL-32 HV is an improved distributor valve that can have a shorter discharge cycle by depressurizing at a higher pressure than the SL-32.
Unlike SL-32, blocks can be made from 1 to 10, and the amount can be adjusted.

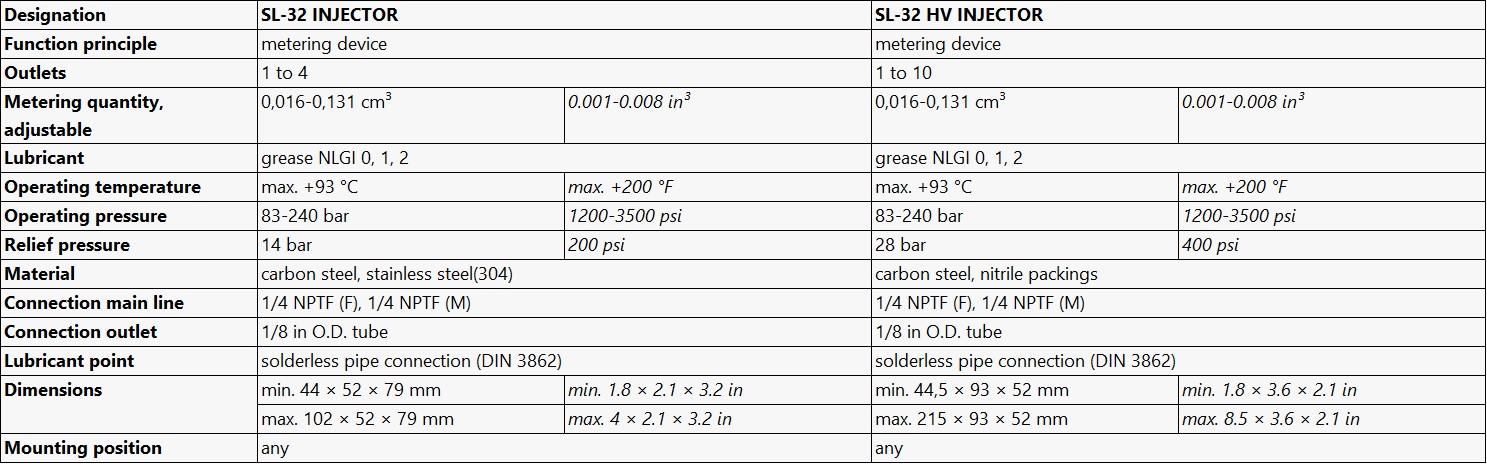

Product specification
